Description

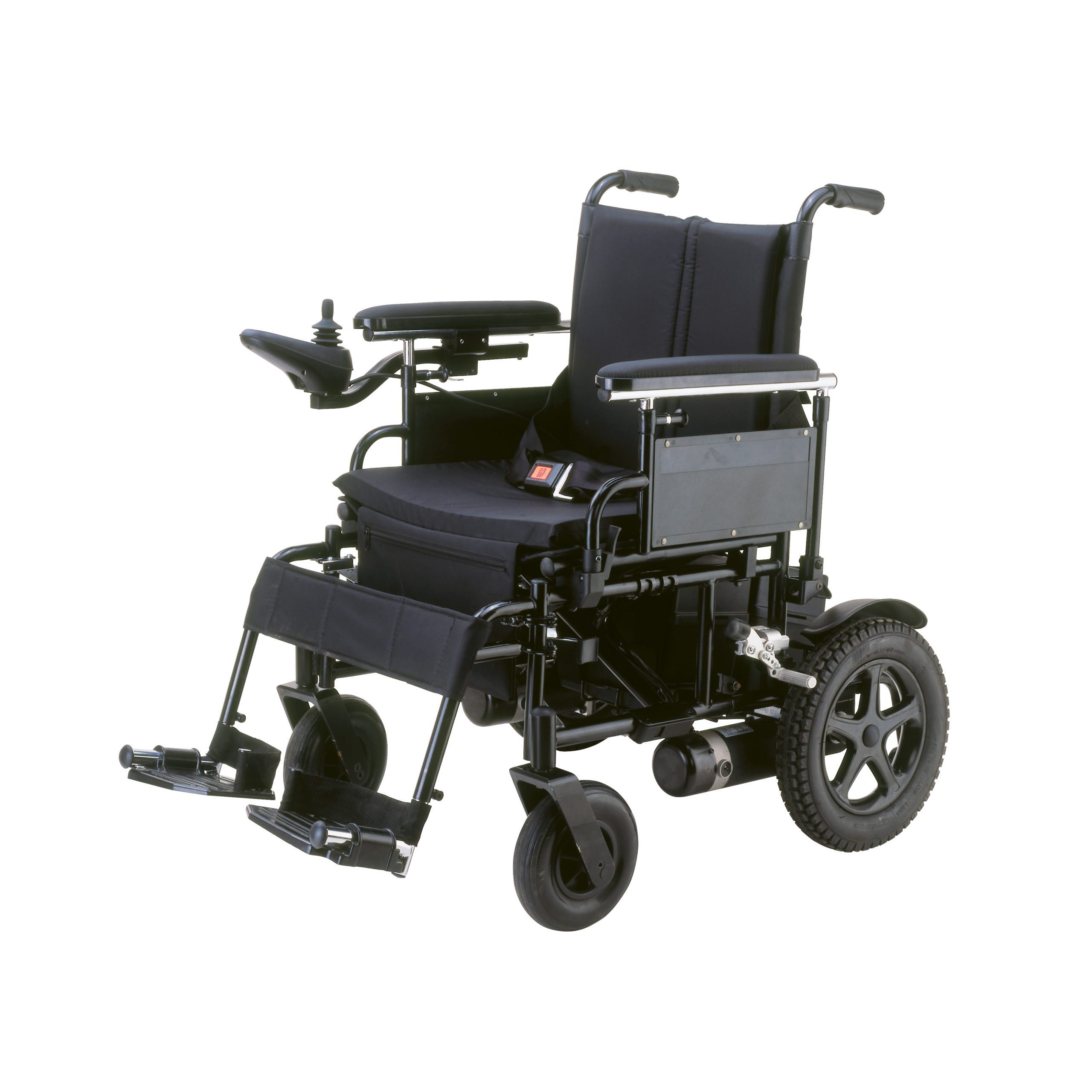

Drive Medical Cirrus Plus EC Folding Power Wheelchair

The Drive Medical Cirrus Plus EC Folding Power Wheelchair features an attractive, lightweight, carbon steel frame with a silver vein finish. The integrated, programmable PG controller and adjustable length joystick mount accommodates most user sizes. The Cirrus Plus EC Folding Power Chair has been tested and surpassed the ANSI RESNA testing requirements, providing our consumers with added security.

Features

• Foldable, lightweight frame for easy portability
• Attractive steel cross-brace frame
• Armrests are padded, adjustable and removable
• Adjustable-length controller mount
• Adjustable-tension back upholstery
• Swing-away footrests with heel loops
• Optional elevating leg rests (Item #CPELR) sold separately
• Positioning belt included
• Power failure alarm
• Padded back upholstery with storage pouch and cushioned seat
• Programmable controller
• Flat-free, non-marking tires
• Easy free-wheel operation
• Manual wheel locks
• General foam seat cushion included
• Anti-tip wheels

Includes

• Positioning seat belt
• Foam seat cushion with pouch
• Anti-tip wheels
• Swing-away footrest with calf straps and heel loops

Specifications

• Weight Capacity: 300 lbs
• Base Weight: 90 lbs
• Batteries (pair): 12V x 36AH (U1)
• Battery Weight (pair): 56 lbs.
• Caster Wheels: 8″ x 2″ Solid
• Charger: 4A Offboard
• Climbing Angle: 6°
• Controller: PG VSi 50A
• Drive Wheels: 12.5″ x 2.25″ Flat-free
• Floor to Seat Height: 18.5″
• Ground Clearance: 4″
• Maximum Range: 15 miles
• Motors (2): 24V x 320W x 4600 rpm
• Top Speed: 5 mph
• Total Weight (without hand control): 146 lbs.
• Warranty on Batteries: 12 Months
• Warranty on Drive Train Components: 24 Months
• Warranty on Electronic Controller: 24 Months
• Warranty on Frame: Lifetime

Options

• 18″ Sling Seat: Drive Medical# CPN18FBA
• 20″ Sling Seat: Drive Medical# CPN20FBA
