Description

Drive Medical Phoenix HD 4 Power Mobility Scooter

The Drive Medical Phoenix HD 4 Power Mobility Scooter is ideal for travel with a 350 lb weight capacity and ergonomic throttle control. It is easily taken apart for transportation and storage. The 4-wheel design and anti-tip wheels assist provide stability on all types of terrains. The height-adjustable seat has flip-back and adjustable-width arms to accommodate users of all body sizes.

• Quick and easy disassembly
• Includes interchangeable red and blue color panels
• Adjustable padded armrests
• Quick-connect batteries
• Ergonomic throttle control

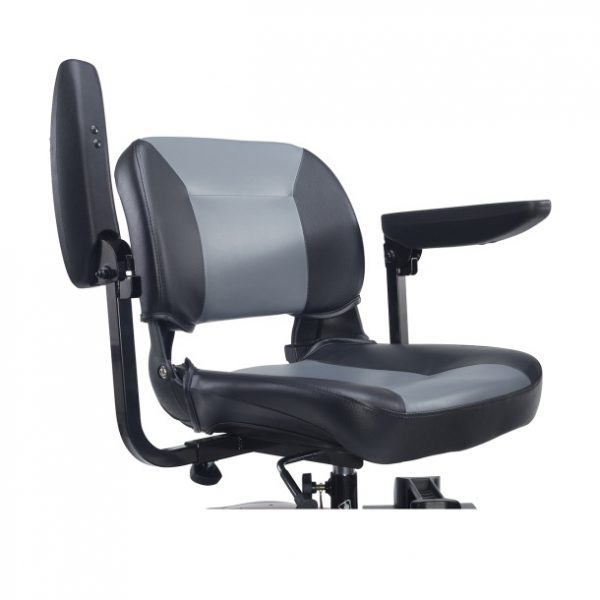

• Height-adjustable swivel seat with two-tone upholstery
• Flat-free, non-marking tires
• Large plastic carry basket and headlight
• Easy-to-adjust tiller and anti-tip wheels
• Swivel seat with fold-down backrest
• Easy free wheel operation
• Electromagnetic brakes

Specifications

• Weight Capacity: 350 lbs
• Base Weight: 77 lbs
• Total Weight: 340 lbs
• Seat Weight: 55 lbs
• Battery Weight (pair): 31 lbs.
• Batteries (pair): 12V x 20AH
• Charger: 1.5A Offboard
• Climbing Angle: 6°
• Dimensions: 41.5″ (L) x 22.5″ (W)
• Floor-to-Seat Height: 20″ – 22″
• Ground Clearance: 3.75″
• Top Speed: 4 mph
• Maximum Range: 15 miles
• Motor: 24V x 350W x 3600 rpm
• Seat Depth: 17″
• Turning Radius: 54″
• Wheels: 9″ x 3″ Flat-free
• Frame Warranty: Limited Lifetime
• Electronics, Controller and Drive Train Warranty: Limited 24 Month
• Battery Warranty: Limited 12 Month

Options

• 17.5″ Folding Seat: Drive Medical# PHOENIXHD4
• 20″ Folding Seat: Drive Medical# PHOENIXHD4-20
