Description

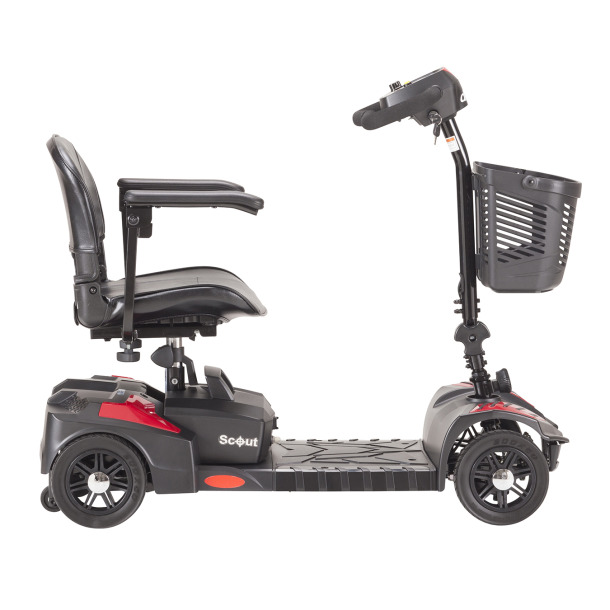

Drive Medical Scout 4 Power Mobility Scooter

The Drive Medical Scout 4 Power Mobility Scooter is ideal for travel with its lightweight design and long-lasting batteries. The Scout 4 can go up to 9 miles with standard batteries and up to 15 miles with extended batteries. The 21.5″ width fits through most doorways and allows for easy maneuverability in small spaces. The Scout 4 can be easily taken apart for transport and storage.

Features

• Quick and easy disassembly
• Color-through color panels hide scuffs and scratches
• Padded, adjustable armrests
• Quick connect batteries
• Electromagnetic brakes

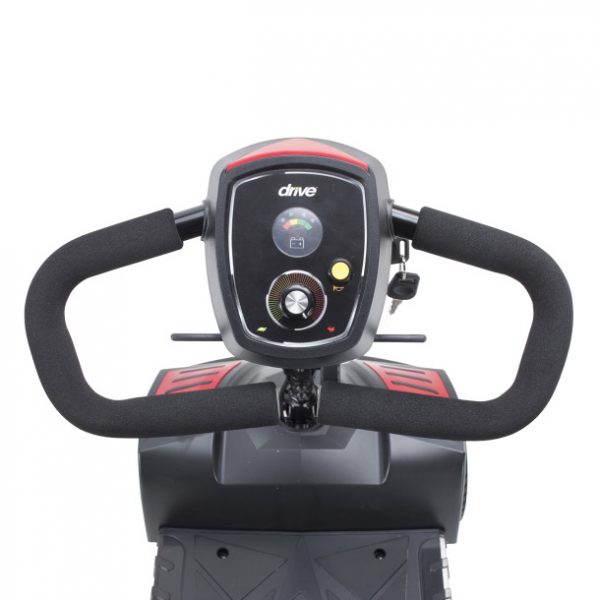

• Ergonomic throttle control
• Height-adjustable swivel seat with fold-down backrest

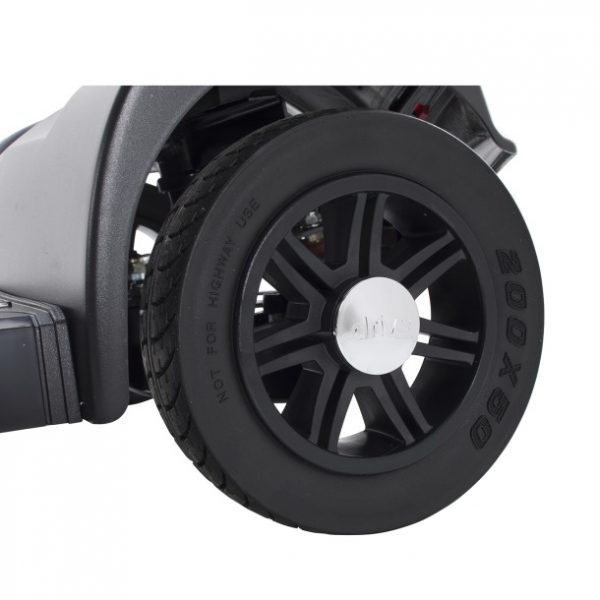

• Flat-free, non-marking tires
• Large plastic carry basket
• Anti-tip wheels with Delta tiller
• Easy free wheel operation

Specifications

• Weight Capacity: 300 lbs
• Seat Width: 16.5″
• Base Weight: 58 lbs
• Heaviest Piece Weight: 39 lbs
• Seat Weight: 16 lbs
• Battery Weight (pair): 20 lbs
• Total Weight: 94 lbs
• Battery Weight: 20-26 lbs
• Charger: Offboard, 2A
• Climbing Angle: 6 degrees
• Controller: CTE 45A
• Dimensions: 42.5″ (L) x 21.5″ (W)
• Floor to Seat Height: 17″ – 19″
• Ground Clearance: 2.5″
• Motor: 24V x 270W x 4700rpm
• Seat Depth: 16″
• Top Speed: 4.25 mph
• Turning Radius: 53.75″
• Wheels: 8″ x 2″ Flat Free
• Warranty:
  • Frame: Limited Lifetime
  • Electronics, Controller and Drive Train: Limited 24 Month
  • Battery: Limited 12 Month

Options

Standard Battery

• 12V x 12AH Batteries
• 9 Mile Maximum Range
• Drive Medical# SFSCOUT4

Extended Battery

• 12V x 20AH Batteries
• 15 Mile Maximum Range
• Drive Medical# SFSCOUT4-EXT
